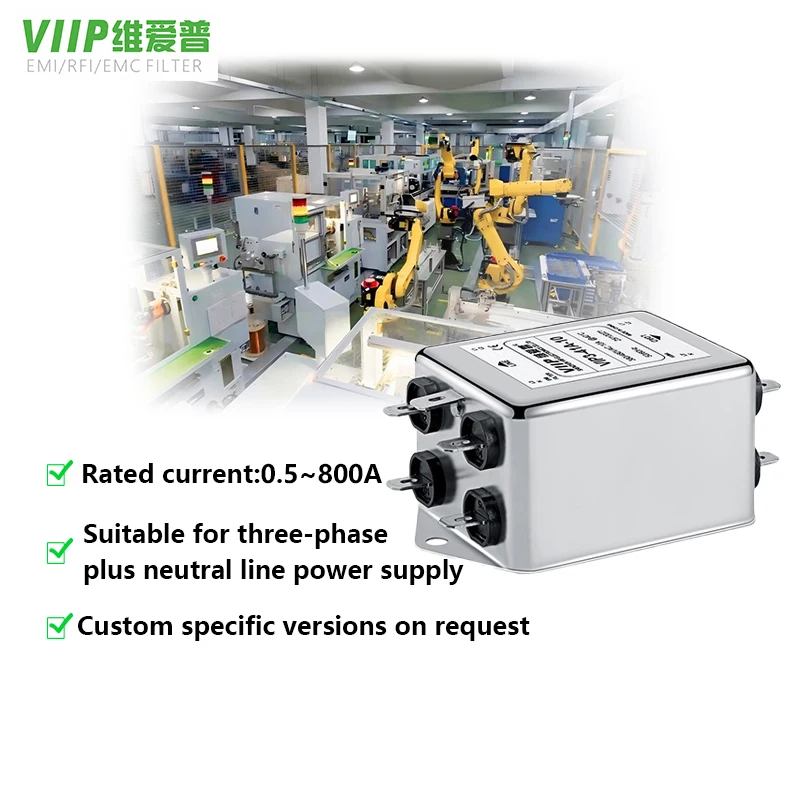

380V Input AC EMI Filter with 20A Rated Current and 440V Rated Voltage for Building Automation

Nama merek:	VIIP
Nomor Model:	VIP3-41A
MOQ:	1 buah
harga:	15USD
Rincian kemasan:	333318
Ketentuan Pembayaran:	T/T, Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

CE TUV UL ROHS REACH

Impedansi masukan:

500VDC/100MOHM MENIT

Tegangan terukur:

110/250VAC

Nilai saat ini:

0,5A-800A

Jenis:

Penyaring EMC

Kerugian penyisipan:

60dB-90dB

Sertifikasi:

CE ROHS,CE CQC,UL.TUL

Menyediakan kemampuan:

2000 buah dalam 10-15 hari

Menyoroti:

380V Input AC EMI Filter

20A Rated Current EMC Filter

440V Rated Voltage Low Pass Filter

Deskripsi Produk

380V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation

The 380V Input AC EMI Filter is designed for building automation systems and print machine hardware equipment, featuring a compact structure for space-limited applications.

Quick Specifications

Model Number: VIP4-1A-20
Type: EMI Filter
Place of Origin: China
Brand Name: VIIP
Transfer Function: Low Pass
Nominal Center Frequency: 150KHz-30MHz
Input Impedance: 50Ω
Insertion Loss: 20~100dB
Rated Voltage: 440V
Rated Current: 0.5A-800A
Environmental Temp: 50°C
Operating Frequency: 50/60HZ
Line to Ground: 2250VDC or 2000VAC
Certifications: UL, TUV, ISO9001, CE, ROHS

Product Description

This three-phase three-line power supply EMI filter features a compact structure for simple, time-saving installation. Its space-efficient design makes it ideal for applications with limited space while offering high cost-effectiveness.

Applications

Widely used in various electrical units including print machines, packing machines, textile equipment, industrial air conditioners, UPS systems, and medical equipment.

Our Advantages

Global Sales Network

Products exported to Europe, the United States, South Korea, Southeast Asia and other regions.

Advanced Hardware Equipment

Fully automatic magnetic material detection equipment and production lines with anti-interference magnetic core production base.

Integrated Technical Service

Combining R&D, production, sales of anti-interference (EMC) electronic components with EMC testing services.

Quality Management

Strict quality standards implementation with continuous improvement processes focused on customer requirements.

Tag:

Termilar Block AC EMI Filter

Atenuation Low Pass Filter 20A

mode umum dan filter mode diferensial
